Demo to Restrict the IP addresses to access your Database

Organizations requires different level of restriction on their databases to secure the environments through blocking IP addresses/SQL Statements or Users to access the databases.

To achieve this requirement with Oracle AVDF, we need to create the Firewall policies.

Below are the example steps to create Blocking policy which will restrict the access unauthorized IP addresses to database.

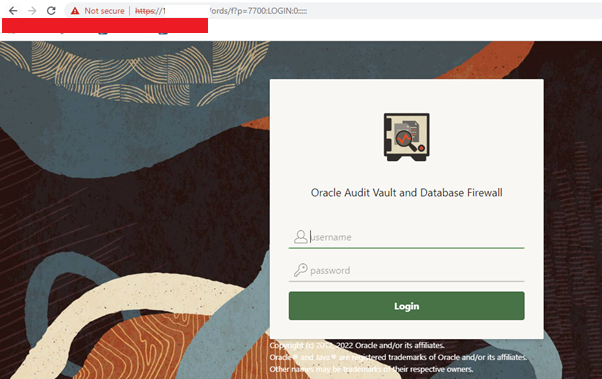

Step-1 Login to the AVDF GUI console with the AUDITOR user.

Example:- AVAUDIT user

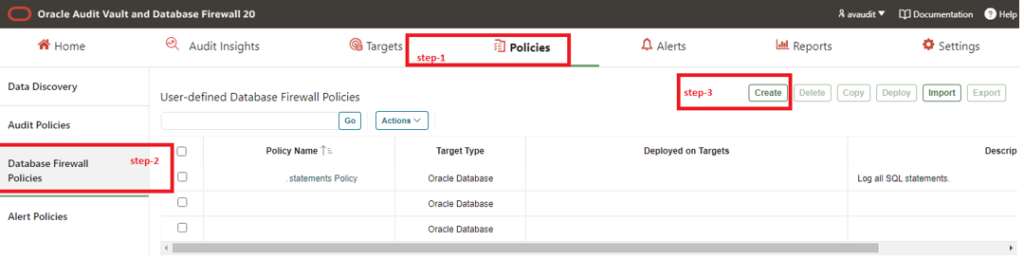

Step-2 Under the Policies tab, create policy as below snap shown in below.

Apologies:- Snaps are blur due to security reasons.

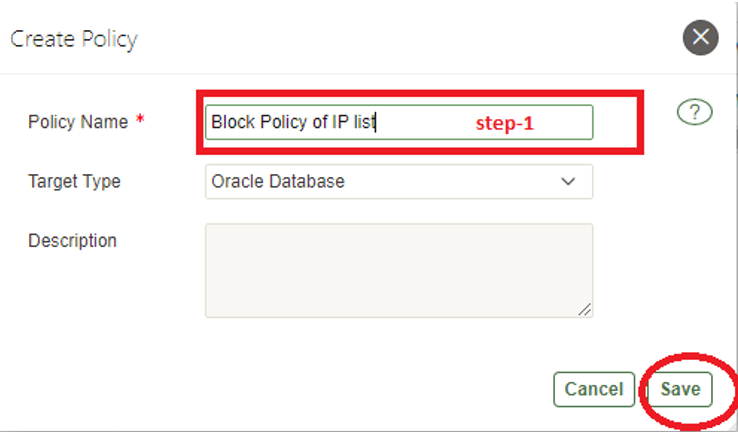

Step-3 Click on Create button and fill the details as below and save it.

Apologies:- Snaps are blur due to security reasons.

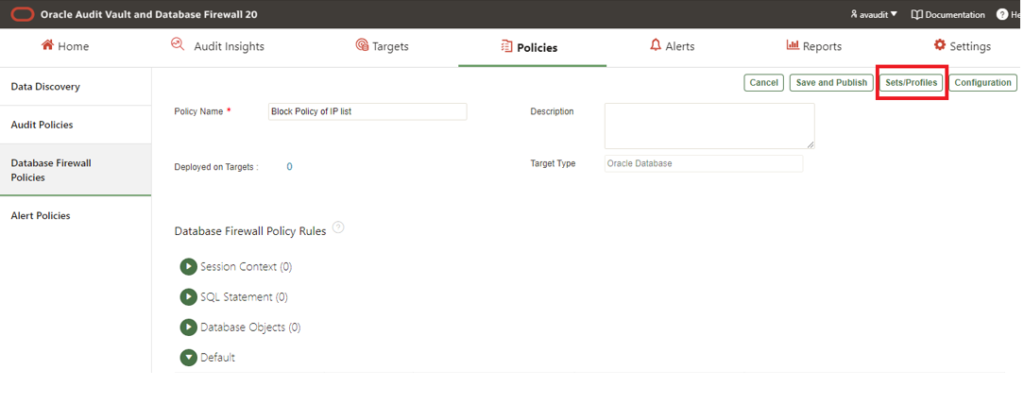

Step-4 We need to set the profile, Click on Sets/Profile button as below.

Apologies:- Snaps are blur due to security reasons.

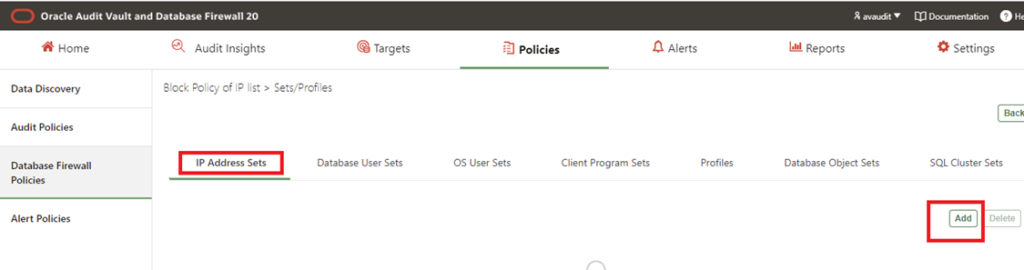

Step-5 There are four different Tabs, click on any tab as per your requirement.

For example: We are blocking Ip addresses, Click on add button.

Apologies:- Snaps are blur due to security reasons.

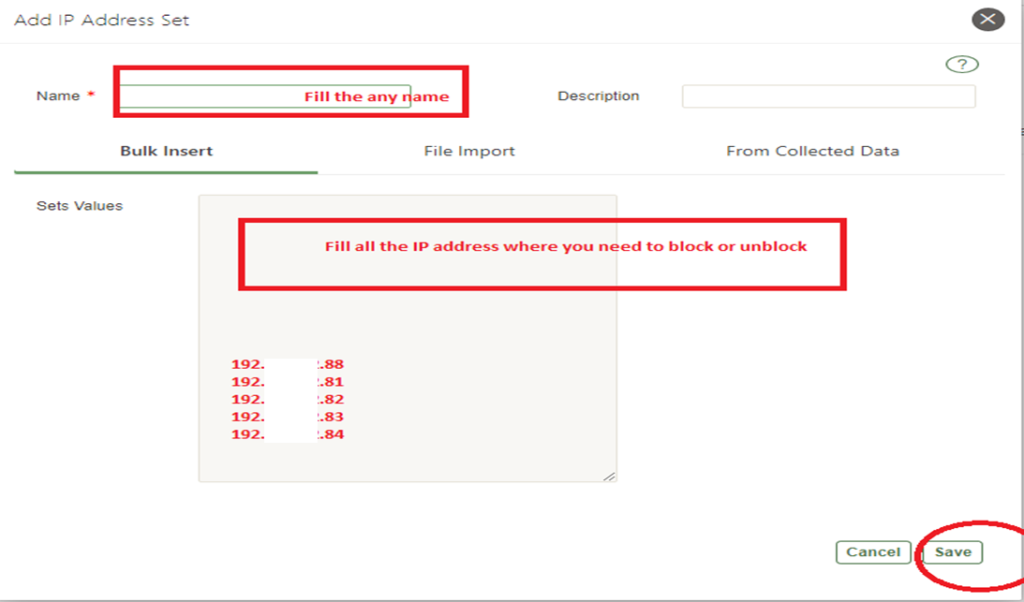

Step-6 Provide the list of IP addresses, Fill below details as per your requirements.

For example: We need to block the listed IPs so that need to add list of IPs only and Please --> Save it.

Note:- We have options to use File Import and From Collected Data to get the list of IP addresses.

Apologies:- Snaps are blur due to security reasons.

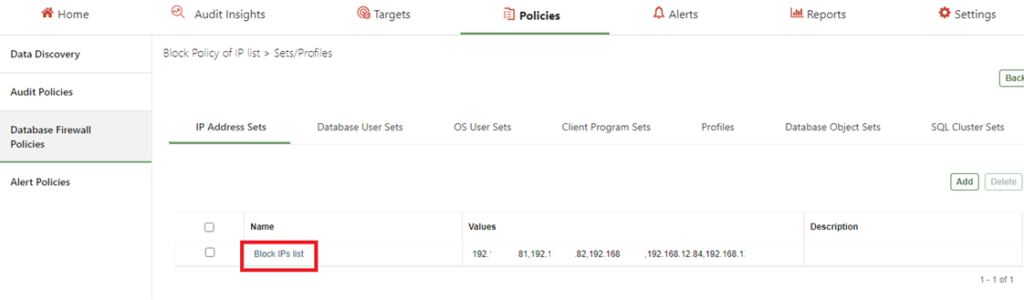

Step-7 Check the details which we have configured as below snap.

Apologies:- Snaps are blur due to security reasons.

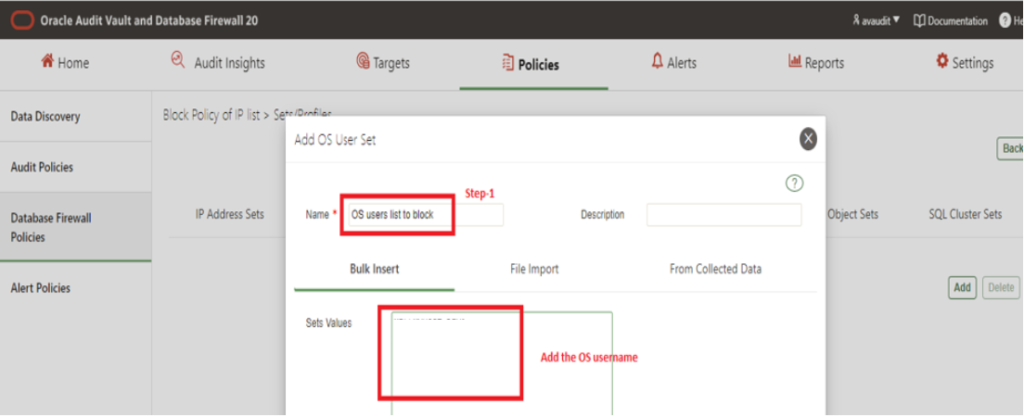

Step-8 Click on OS User Sets and click on add button, Fill the details abs below and save.

Note:- Please provide the SYSTEM/Hostname names which IPs we have to block.

Apologies:- Snaps are blur due to security reasons.

We can Check the SYSTEM/Hostname using below steps shown in below snap

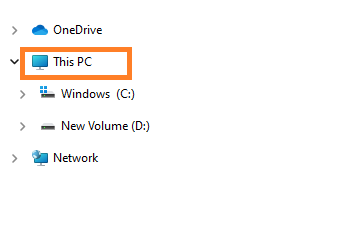

Step-A Go to This PC on your system and Right click on this

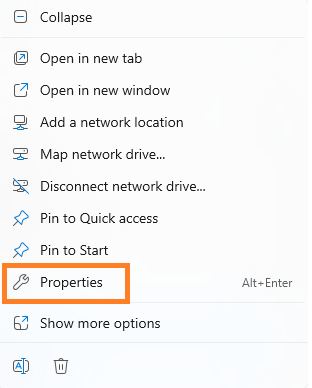

Step-B Click on Properties option as below

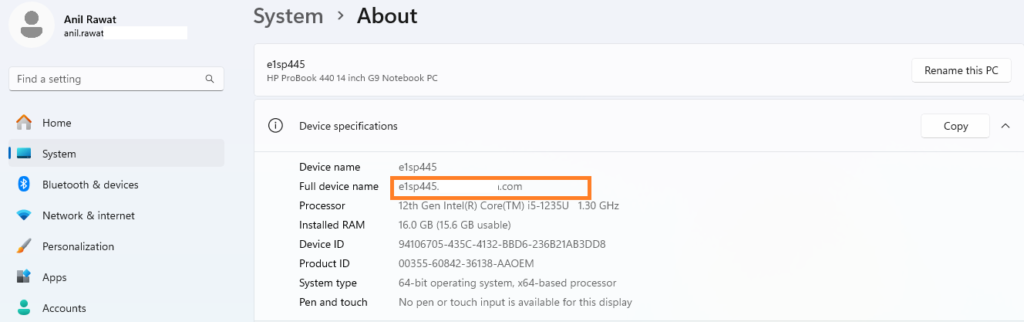

Step-C See below is the SYSTEM/Hostname of the system

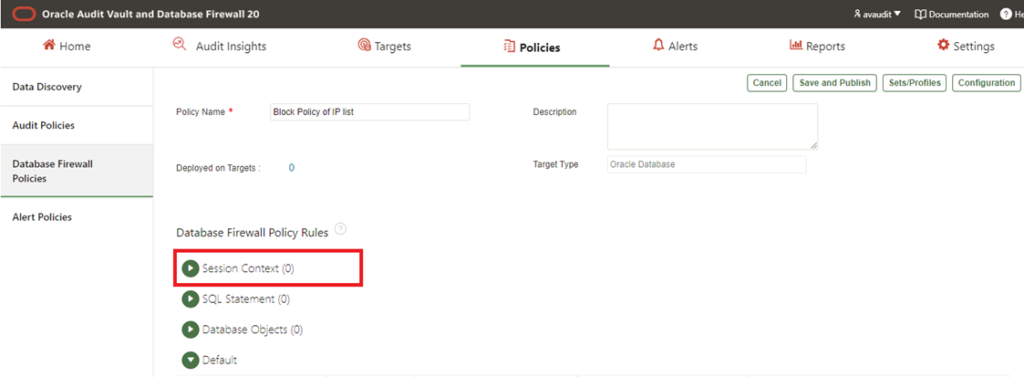

Step-9 Now, Click on Back button (top right corner) à then click on Session Context Rule.

Click on Session Context and click add button to create a rule

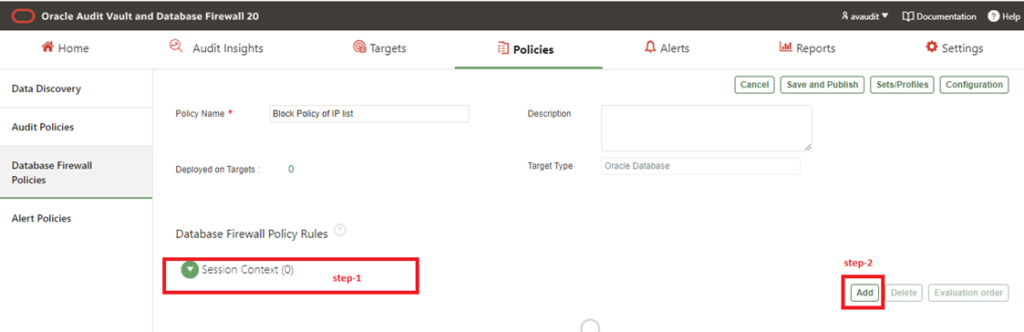

Step-10 Now for create a Rule, Click on Add button

Apologies:- Snaps are blur due to security reasons.

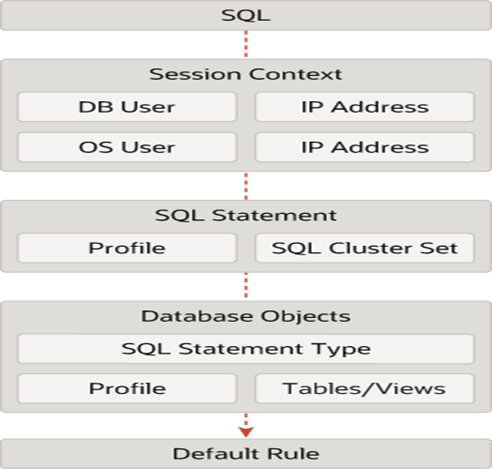

Note: - We can create the rules with below combination only-

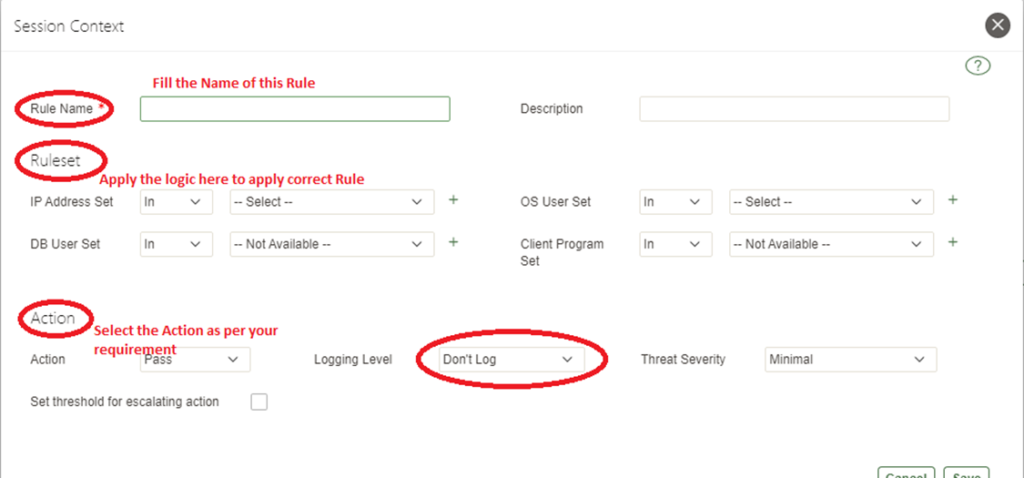

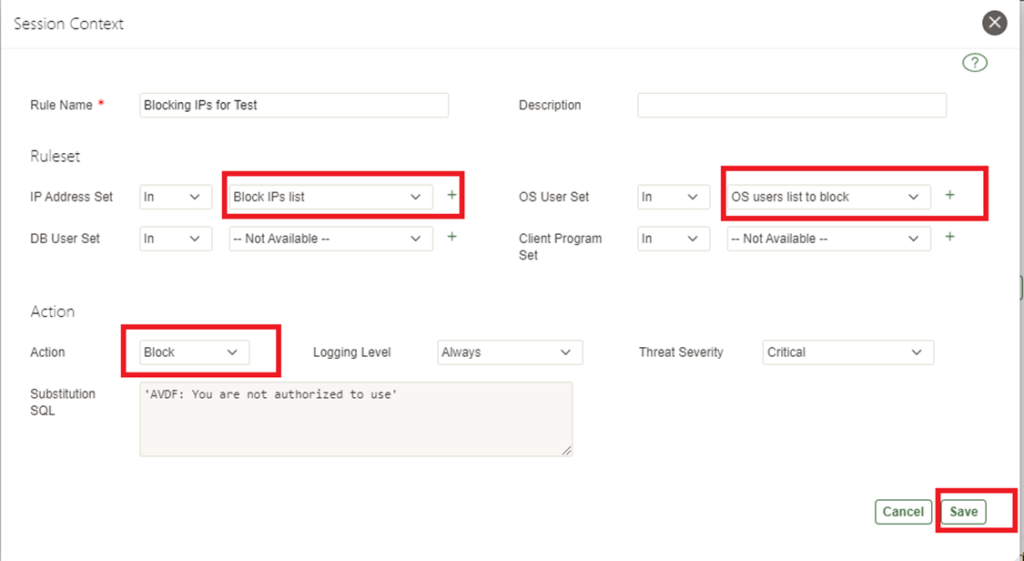

Step-11 Fill the details on below new page after clicking Add button

For Example:- Check the below snap for reference

Apologies:- Snaps are blur due to security reasons.

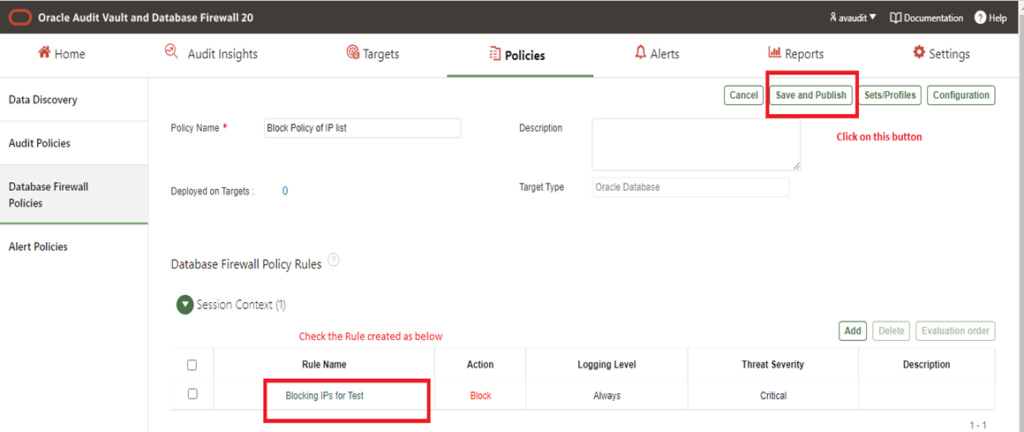

Step-12 Click on Save and Publish button as below snap

Apologies:- Snaps are blur due to security reasons.

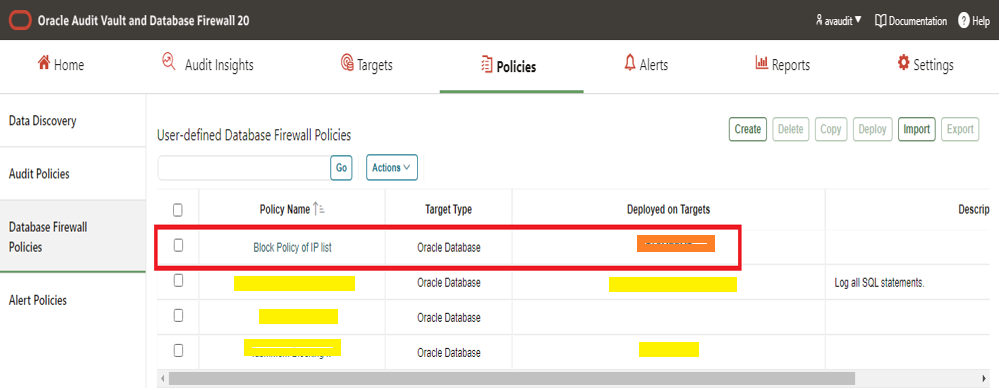

Step-13 See, we have created the policy under the User Defined Policies

Apologies:- Snaps are blur due to security reasons.

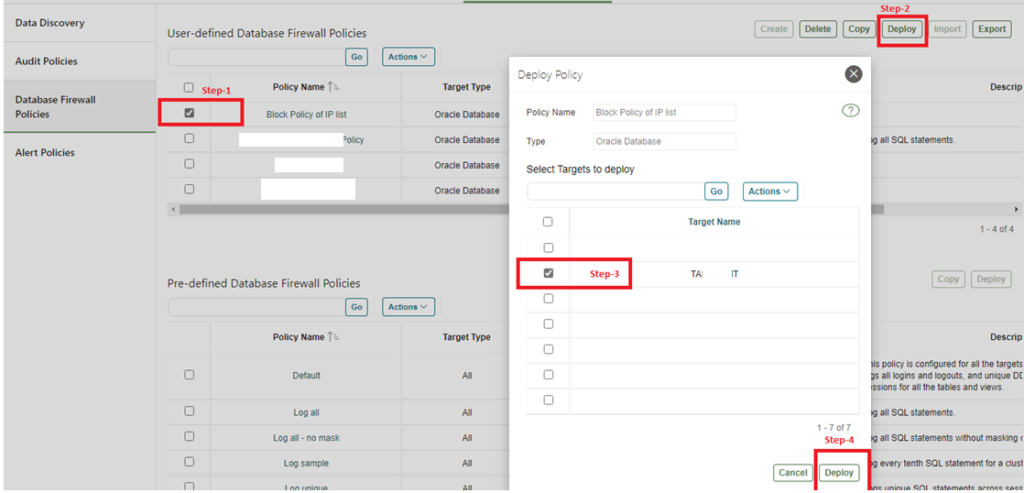

Step-14 How to deploy the policy for target databases?

Now select the policy and Deploy on the required Target Database as below steps

At last Step:- Now the policy has been deployed on required target database.

Check the status of the Policy applied/Deployed to the Target database

Note :-To check the Policy is working or not:- Please access the database from blocked IP address.
